BM20B(0.8)-34DS-0.4V(51)
Manufacturer:
Hirose Electric
Mfr.Part #:
BM20B(0.8)-34DS-0.4V(51)
Datasheet:
Description:

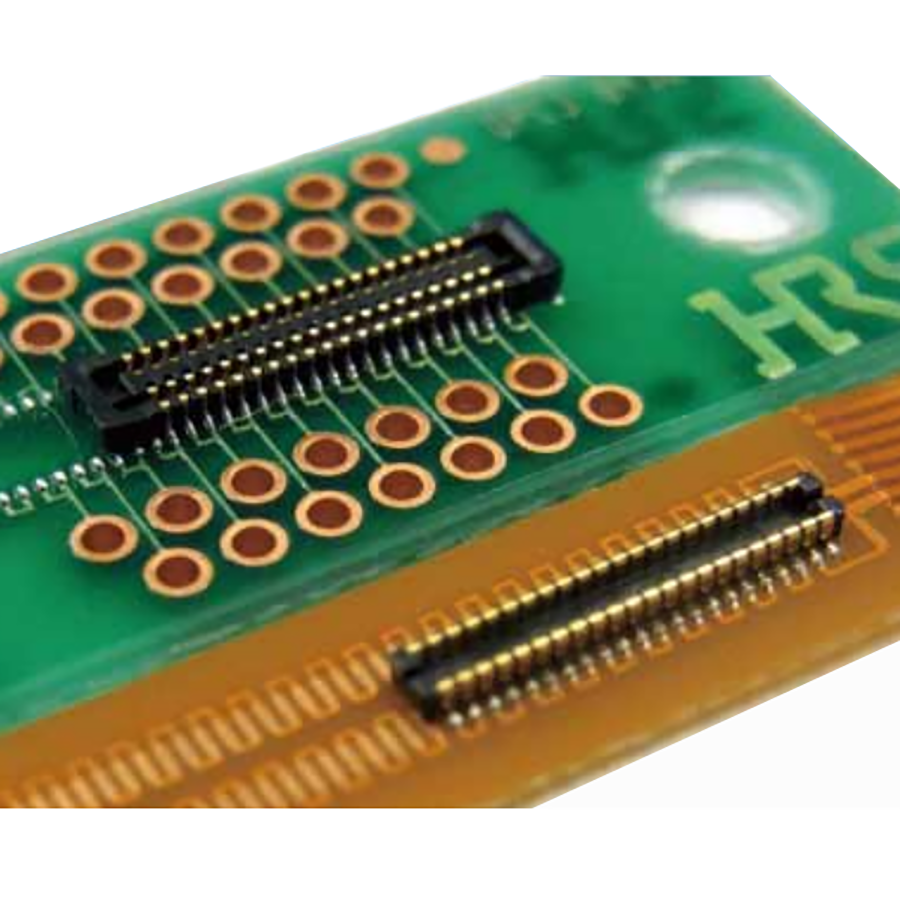

Board to Board Connectors SMD/SMT Receptacle Number of Positions:34 Number of Rows:2 Pitch:400 µm
| Parameter | Value |
|---|---|
| Length | 9.28 mm |
| Width | 2.3 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -35 °C |
| Height | 800 µm |
| Packaging | Reel |
| Voltage Rating | 30 V |
| RoHS | Compliant |
| Insulation Resistance | 50 MΩ |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 400 µm |
| Current Rating | 300 mA |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Connector Type | Receptacle |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Contact Resistance | 100 mΩ |
| Housing Color | Black |
| Stack Height | 800 µm |
| Mated Stacking Heights | 800 µm |
| Contact Voltage Rating (AC) | 30 V |
| Contact Voltage Rating (DC) | 30 V |
| Contact Pitch | 0.4 mm |
| Mounting Angle | Vertical |
Stock: 4946
Distributors
pcbx
pcbxUnit Price$0.79509
Ext.Price$0.79509
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.79509 | $0.79509 |
| 10 | $0.65060 | $6.50600 |
| 25 | $0.56083 | $14.02075 |
| 50 | $0.54390 | $27.19500 |
| 100 | $0.52749 | $52.74900 |
| 300 | $0.49119 | $147.35700 |
| 500 | $0.45739 | $228.69500 |
| 1000 | $0.43003 | $430.03000 |
| 3000 | $0.41257 | $1237.71000 |
| 5000 | $0.39583 | $1979.15000 |
